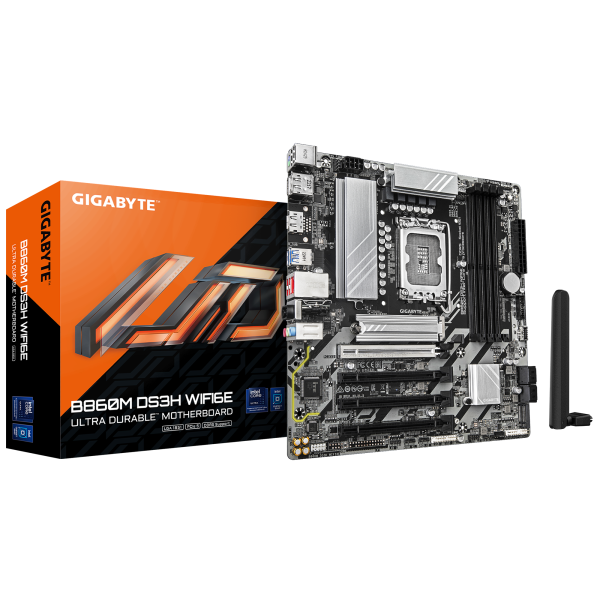

Mother Gigabyte B860M DS3H WIFI6E

Descripción

• Procesador: LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU

• Chipset: Intel® B860 Express Chipset

• Memoria: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Gráficos Integrados: Integrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz. * Support for HDMI 2.1 version and HDCP 2.3.  2 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
  – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  – BLUETOOTH 5.3
  – Support for 11ax 160MHz wireless standard
  Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
  – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  – BLUETOOTH 5.3
  – Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

• Puertos de Expansión:

  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:
  – 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)

• Interfaz de Almacenamiento

  CPU:
  – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
  – 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:
  – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  – 3 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  – 4 x USB 2.0/1.1 ports available through the internal USB headers

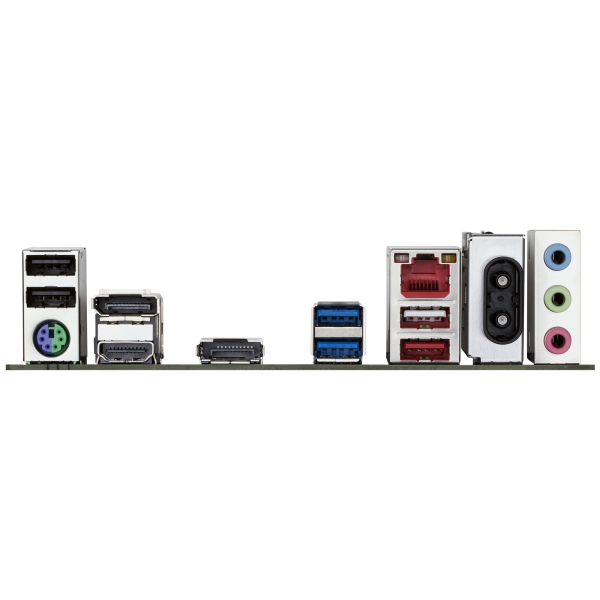

• Conectores del Panel Trasero

  1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  2 x DisplayPorts (Note)
  1 x USB 3.2 Gen 2 Type-A port (red)
  2 x USB 3.2 Gen 1 ports
  3 x USB 2.0/1.1 ports
  2 x antenna connectors (2T2R)
  1 x RJ-45 port
  3 x audio jacks

• Software Incluido

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Sistema Operativo

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  * The Intel® NPU driver is only supported on Windows 11.

• Diseño

  Micro ATX Form Factor; 24.4cm x 24.4cm
